UV Series - Utility Vehicle (UV10)

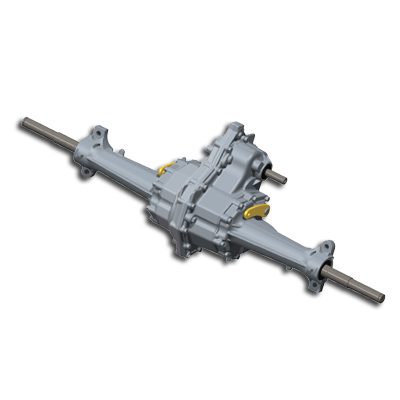

Utility Vehicle (UV10)

  • Designed for light duty consumer vehicles
  • Low cost solution for maximum value
  • Differential Lock

Standard Specifications (for additional information please contact us)

UV10D UV10
Rated Axle Output Forward 327 Nm / 241 ft-lb
Reverse 343 Nm / 253 ft-lb
Peak Axle Output Forward 1,058 Nm / 781 ft-lb
Reverse 1,411 Nm / 1,041 ft-lb
Max. Input Speed 4,740 RPM
Max. Tire Diameter 508 mm / 20 inches
Reduction Ration Forward 18.4:1
Reverse 24.4:1
Input Shaft Diameter 19.8 mm / 0.78 inches
Gear Changes F-N-R (Full Constant Mesh)
Max. Travel Speed) 24 KPH / 15 MPH
Weight (Dry) 28 kg / 61.7 lbs
Differential Bevel Gear Type with Differential Lock Bevel Gear Type
